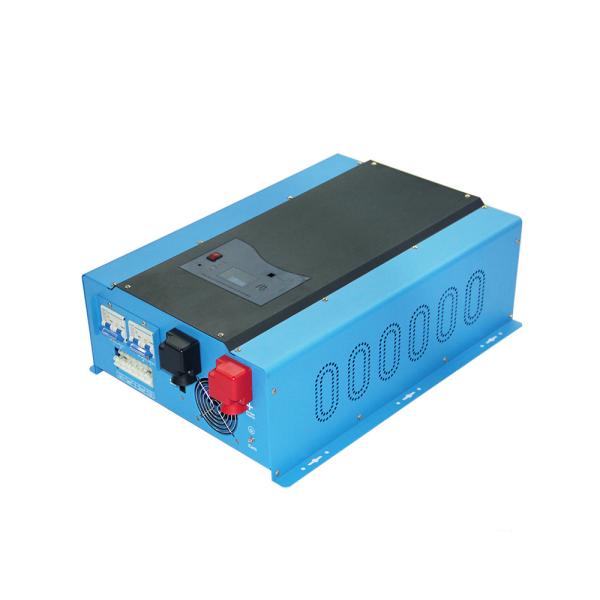

Cheap price 10KW 96Vdc 220Vac off grid low frequency pure sine wave inverter with charger

Greentech Power Electronic Limited
Contact Now
    Buy cheap Cheap price 10KW 96Vdc 220Vac off grid low frequency pure sine wave inverter with charger from wholesalers

    Buy cheap Cheap price 10KW 96Vdc 220Vac off grid low frequency pure sine wave inverter with charger from wholesalers
    • Buy cheap Cheap price 10KW 96Vdc 220Vac off grid low frequency pure sine wave inverter with charger from wholesalers

    Cheap price 10KW 96Vdc 220Vac off grid low frequency pure sine wave inverter with charger

    Ask Lasest Price
    Brand Name : GreenTech
    Model Number : PSW7
    Certification : CE
    Price : USD 600~800USD
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Cheap price 10KW 96Vdc 220Vac off grid low frequency pure sine wave inverter with charger

    Feature:

    On inverter:

    • High overload ability
    • Low battery voltage trip selectable, extracting max power from various batteries with different protections.
    • Low quiescent current, selectable sensing cycle to reduce power consumption.

    On battery charger

    • 3-step intelligent battery charging.
    • 8 preset battery type selector plus de-sulphation for totallly flat batteries.
    • Powerful charge rate up to 70Amp, selectable charging current.
    • PFC(Power Factor Correction) for charger, less power consumption than conventional units.

    On Transfer

    • Delay before transfer, extra protections for loads under generator mode.
    • Input AC voltage range selectable, for different kinds of loads.
    • 8 ms typical transfer time, guarantees power continuity.
    • 30A/40A through current ablility.
    • Output voltage regulation optional.

    On remote control & other featuers

    • Ability to switch the unit on/off.
    • Ability to select/deselect power saver mode.
    • 17 alarms/warnings, informative for easier operation and trouble-shooting.
    • LCD status display available.
    • RS232 communication port optional.


    Specification:

    Model NO.8048E/8096E10048E/10096E12048E/12096E
    Norminal Power8000W10000W12000W
    AC InputPhase & waveformsingle phase & sinewave
    voltage220Vac/230Vac/240Vac
    Acceptable Voltage154-273Vac
    Line Low Transfer154V
    Line Low Return164V
    Line High Transfer273V
    Line High Return263V
    Frequency50Hz or 60Hz(Auto Sensing)
    Line Low Transfer40Hz
    Line High Transfer80Hz
    OutputPhase & waveformSingle phase & sinewave(bypass mode sync to input)
    voltage220Vac/230Vac/240Vac(same as input on bypass mode)
    Voltage Regulation±10%rms(bypass mode sync to input)
    Frequency50Hz or 60Hz(Auto Sensing)
    Crest Power3 times of ratings
    Short Circuit ProtectionYes, shutdown
    Power Factor0.9~1.0
    DC InputBattery Voltage48V
    Minimum Start Voltage40V
    Low Battery Alarm44V
    Low Battery Transfer40V
    High Voltage Alarm64V
    Max Charging Current75A85A100A
    Over Charge Voltage62.8V
    TransferLine Mode>95%
    EfficiencyBattery Mode>85%
     Power SaverAvailable when the load is less than 75 Watts
    IndicatorsLCD DisplayInput Voltage,Output Voltage,Frequency,battery Voltage,Load,
    Temperature,Charge Current,Fault
    4-LED DisplayCharge,Line,Inverter,Fault
    LCD DisplayInput Voltage,Output Voltage,Frequency,Battery Voltage,Load
    Switch selectorSaving Mode is on/off when push the switch forwards/backwards,
    keeping it horisontal is turning the inverter off
    Audible AlarmSounding when the heatsink's tem is over 105ºC and shutdown
    after 30 seconds
    Protectionslow battery,over charging,over temp,over load
    CommunicationsRJ11/RS232(Optional)
    Enviro-mentalOperating Environment0-40ºC,0-95%RH(non-condensing)
    Audible Noise<60dB
    Net Weight(KG)566468
    Dimension (mm)549*450*201.2584*450*201.2
