    High Performance Solar Panel Battery Inverter Overtemperature Protection Avaialble

    Ask Lasest Price
    Brand Name : GreenTech
    Model Number : GTL
    Certification : CE
    Price : USD 100~400USD
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    High Performance Solar Panel Battery Inverter Overtemperature Protection Avaialble


    High Performance Solar Panel Battery Inverter Overtemperature Protection Avaialble


    Feature:

    • Pure sine wave inverter
    • Output power factor 1
    • Selectable high power charging current
    • Selectable input voltage range for home appliances and personal computers
    • Configurable AC/Battery input priority via LCD setting
    • configurable power saving mode via LCD setting
    • Compatible with generator power
    • Dry contact port for generator to realize mutualcontrol by generator and utility
    • Auto restart while AC is recovering
    • Overload and short circuit protection
    • Smart battery charger design for optimized battery performance
    • Cold start function

    Specification:


    ModelGTL- 1000GTL-2000
    Rated Power1000W2000W
    INPUT
    Voltage100/110/120Vac;220/230*/240Vac
    Selectable Voltage RangeWide Range : 75vac~138Vac; 155Vac~275Vac(for home appliances)
    Narrow Range: 82Vac~138Vac; 165Vac~275Vac(for personal computer)
    Frequency Range40-70Hz( 50Hz/60Hz)
    OUTPUT
    AC Voltage Regulation
    (Batt. Mode)
    100/110/120Vac;220/230*/240Vac
    Surge Power2000VA4000VA
    Efficiency (Peak)88%
    Transfer time<20ms
    WaveformPure sine wave
    BATTERY
    Battery Voltage12V24V
    Charge current35A35A
    Fast charge voltage14.3VDC28.6VDC
    Float charge voltage13.7VDC27.4VDC
    Over voltage portect16.5VDC33.0VDC
    Battery low voltage alarm10.5VDC21.0VDC
    Battery low voltage shutdown10.0VDC20.0VDC
    ProtectionOver charging,over temp, over battery voltage, over load,short-circuit
    Operating environment Temp55°C
    CoolingIntelligent Fan

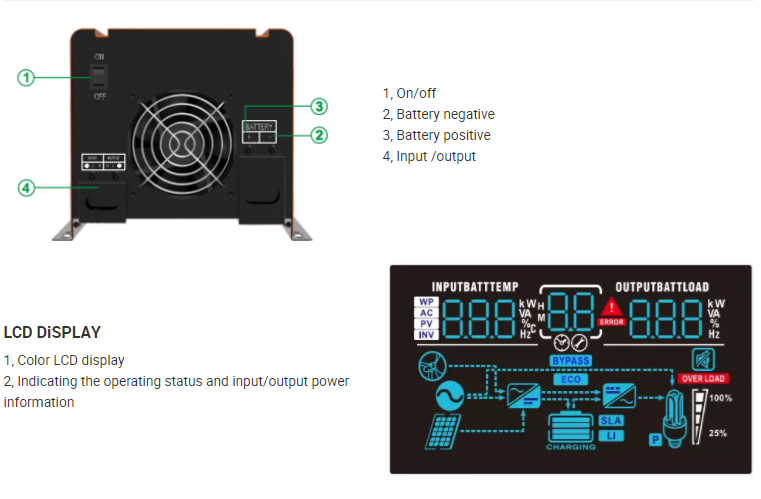

    DisplayColor LCD
    Paramerter settingBy LCD or Position Machine:
    Charging current , battery type , input voltage , output frequency, Wide and Narrow range of ac input voltage , Power saver mode, ac/battery priority
    PHYSICAL
    Dimension D*W*H(mm)390*222*178
    Net Weight(kgs)11.415
    ENVIRONMENT
    Humidity5-95% Relative Humidity (Non-condensing)
    Operating Temp.-10°C to 50°C
    Storage Tem..-15°C to 60°C
