1000VA 700w 1200va 900w 2000va 1500w high frequency modified sine
wave homage ups
Introduction
HEXA is a dc to ac inverter with auto line to battery transfer and
integrated charging system, serving as an extended run ups, a stand
alone power source or an automotive inverter. HEXA supplies power
from ac power and dc power . when AC cable is connected to a wall
socket, utility power goes to connected equipments and /or charges
the battery set via charging system . In battery mode, Hexa
automatically converts battery energy into ac for backing up to the
connected devices
Features
● Automatic line-to-battery switchover
● Configurable Input Voltage ranges via LCD setting
● High Efficient DC-to-AC conversion,minimizing energy loss
● Rack design & wall-mounted design for flexible installation
● Built-in enhanced charger
● Intelligent 3-stage charger control for efficient charging and
preventing overcharge
● Auto restart while AC recovery
● User-friendly LCD+LED indications
● Multiple protection: Low battery alarm, low battery shutdown,
over charger protection, overload protection, over temperature
protection,short circuit protection
● Battery cable 10AWG 60cm (double line)
● With the enviromental temperature control charge management
Specification
| Model No. | HEX-1004 | HEX-1204 | HEX-2004 |
| Capacity | VA/W | 1000VA/720W | 1200VA/900W | 2000VA/1500W |
| Norminal Battery Voltage | 12VDC | 24VDC |
| Line Mode |
| INPUT | Normal Voltage | 230VAC |
| Voltage Range | 170-280VAC (Narrow Range), 90-280VAC (Wide Range) |
| Normal Frequency | 50Hz or 60Hz |
| OUTPUT | Voltage | 230VAC |
| Frequency | following the Utility |
| Output Waveform | Modified Sine-wave |
| BATTERY &CHARGER | CHARGE CURRENT | 20AMP | 15AMP |
| OVERCHARGE PROTRECTION | 16V | 32V |
| TRANSFER TIME | Typical | 15ms Typical, 40ms Max. |
| EFFICIENCY | AC TO AC | >95% |
| DC TO AC | >80% |
| DISPLAY INNDICATOR | AC MODE | Display output power, output voltage |
| Battery mode | the mark of battery will flicker every 1second |
| battery charging mode | display the battery capacity |
| Fault | display fault |
| AUBIDLE ALARM | Low Battery at battery mode | Sounding every 2 seconds |
| overload | sounding every 0.5 seconds |
| Fault | Continuously sounding |
| Protection | Full protection | Discharger,over-charged,overload,over temperature.short-circuit
protection. |
| Physical | Dimensions( D*W*H) | 296.4*268.1*90.6mm |
| Net Weight(kg) | 1.98 | 2.29 | 2.17 |
| Environment | Operating environment | 0℃ to 50℃,5% to 90% relative humidity (non-condensing) |
| Storage Environment | -15℃ to 55℃,5% to 95% humidity (non-condensing)than dB |
| Noisel Level | Less than 50dB |

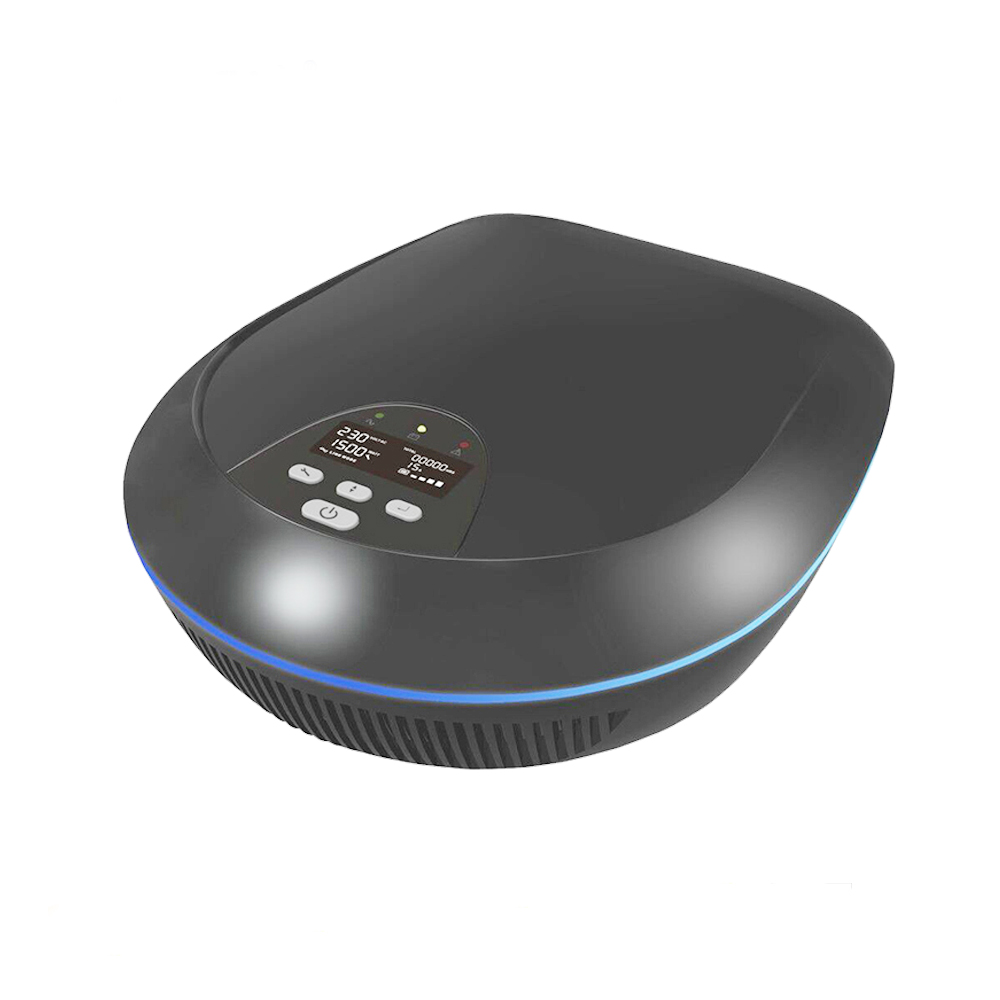

Production pictures:
