IP20 Customised LED Emergency Lights For Residential / Institution
Buildings 50 / 60Hz
Product Features:
* Embedded/Recessed mounting,
* Fast and easy installation,
* Advance 25 degree beam angle, Cree LED as lighting source,
* Efficient high quality emergency driver,
* Long-life, maintenance-free, rechargeable Lithium iron
phosphate(lifePo4) battery
* Over-charged and over-discharged protection,
* SELV classified(outputs LED,batteries,status LED,test switch),
* IP20 waterproof rate
Application:
* Underground Warehouse/Underground Car Parking,
* Commercial Buildings
* Household Buildings Fire Exit Door
* Super-markets
* Residential / Institution buildings
* Hotels
* Conference/meeting room
* Hospitals General lighting, Commercial lighting, plant growing
lighting.
* Refrigeratory
Products Prameter:
| Model No. | GT-ESL1-3W |
| Protection Against Electric Shock | Class II(Safety extra low voltage for fitting) |
| Emergency Working Voltage | 220-240Vac 50-60Hz |
| Emergency LED | 1*3W Cree LED |
| AC Input Power | <3.5W |
| AC Input Current | <50mA |
| Luminous | 240lm±10% |
| Lighting Efficiency | 100lm/W |
| Power Factor | >0.5 |
| CRI | >80Ra |
| LED Color Temperature | 4000K |
| Max. Casing Temperature | <70℃ |
| Output Voltage | 2..5-3.5V |
| Output Current | 700mA |
| Output Emergency Power | 3W Max. |
| Recharge Time | ≥16hours |
| Dischare Duration | 3hours |
| Battery Pack | LifePo4 Battery 6.4V 1500mAh Rated 500 charge/Discharge Cycle |
| Battery Voltage | 4.8V |
| Battery Type | IFR18650(Ronda) |
| Charging Indicator Light | Green light on: Battery in charging/fully charged |
| Indicator off: The device is something woring and is malfunction |
| IP rating | IP20 |
Suitable for mountingon Normally flammable surface
Minimum distance from illuminated object is 0.5 meter
This product is designed to be installed in pressed steel fittings;
The mac depth of the steel should be 1.5mm
Complies with EN60598 (BS4533), EN60598-2-22, EN55015, EN61000-3-2,
EN61547

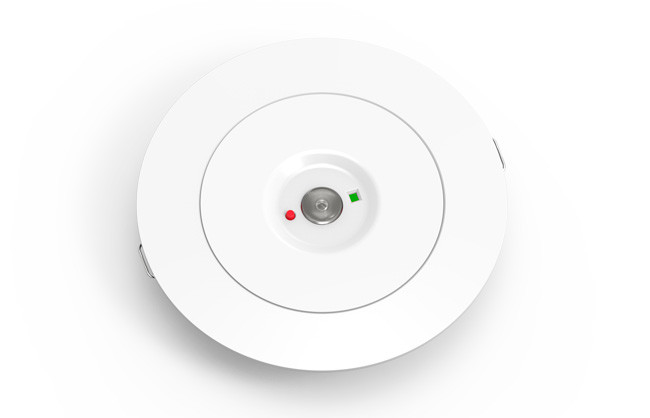

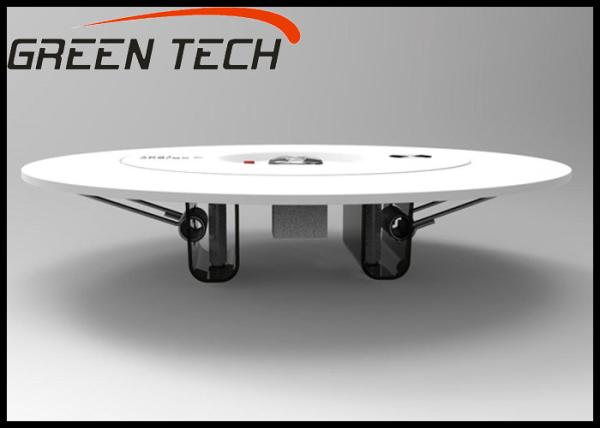

Photos Show:
Dimension:(Unit MM)
Installation:
